KIT.24x48
WALL-S

€ 188,000.00 VAT excluded

No. of containers: 7

Delivery time:
4 WEEKS FROM EXW ORDER

Request information >>

Validity prices from January 2021 to December 2023

Due to the ongoing increase in raw material costs, the sales prices displayed may be subject to change in the bidding process.


Download pdf
Request the complete product data sheet
Description

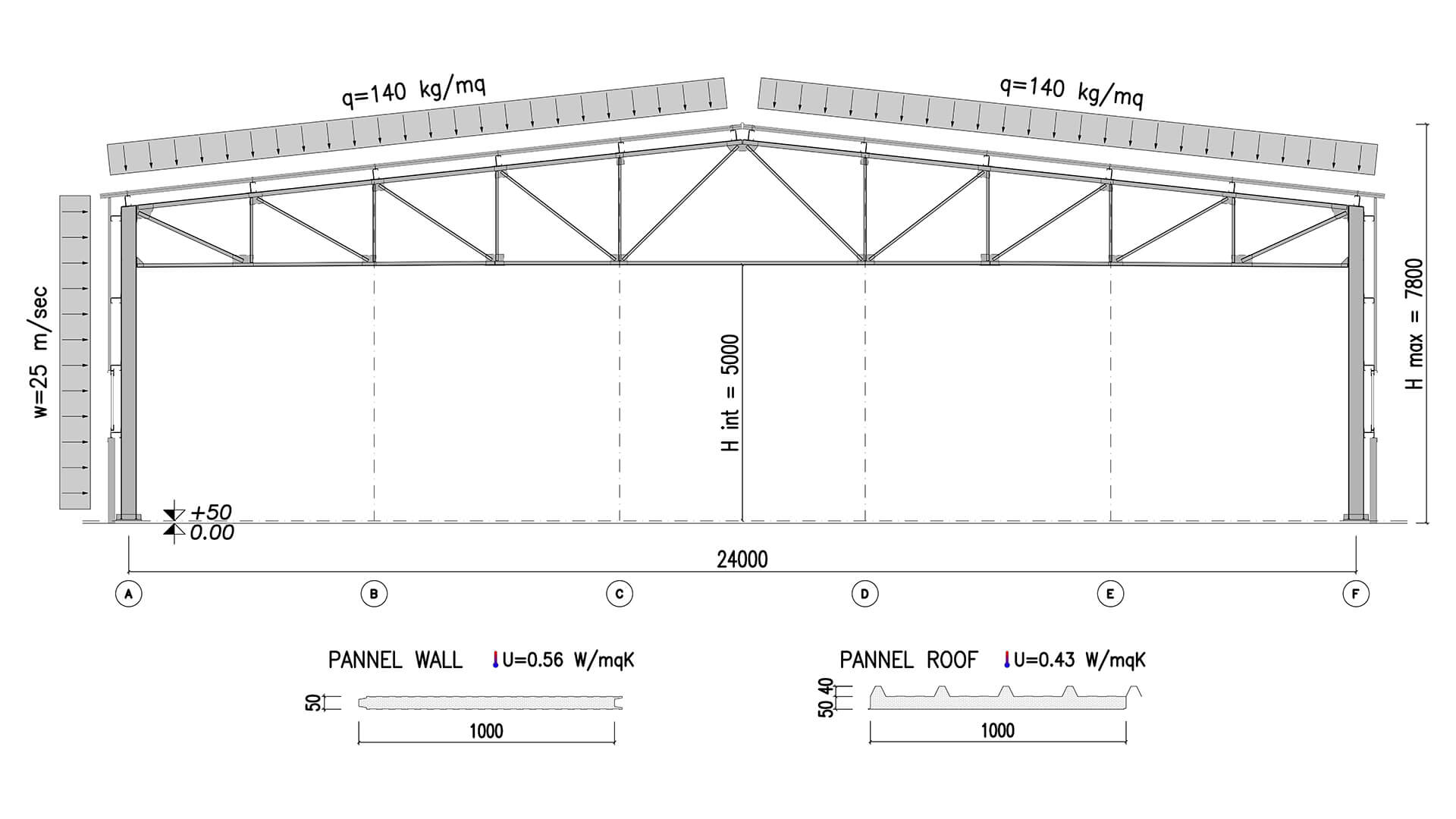

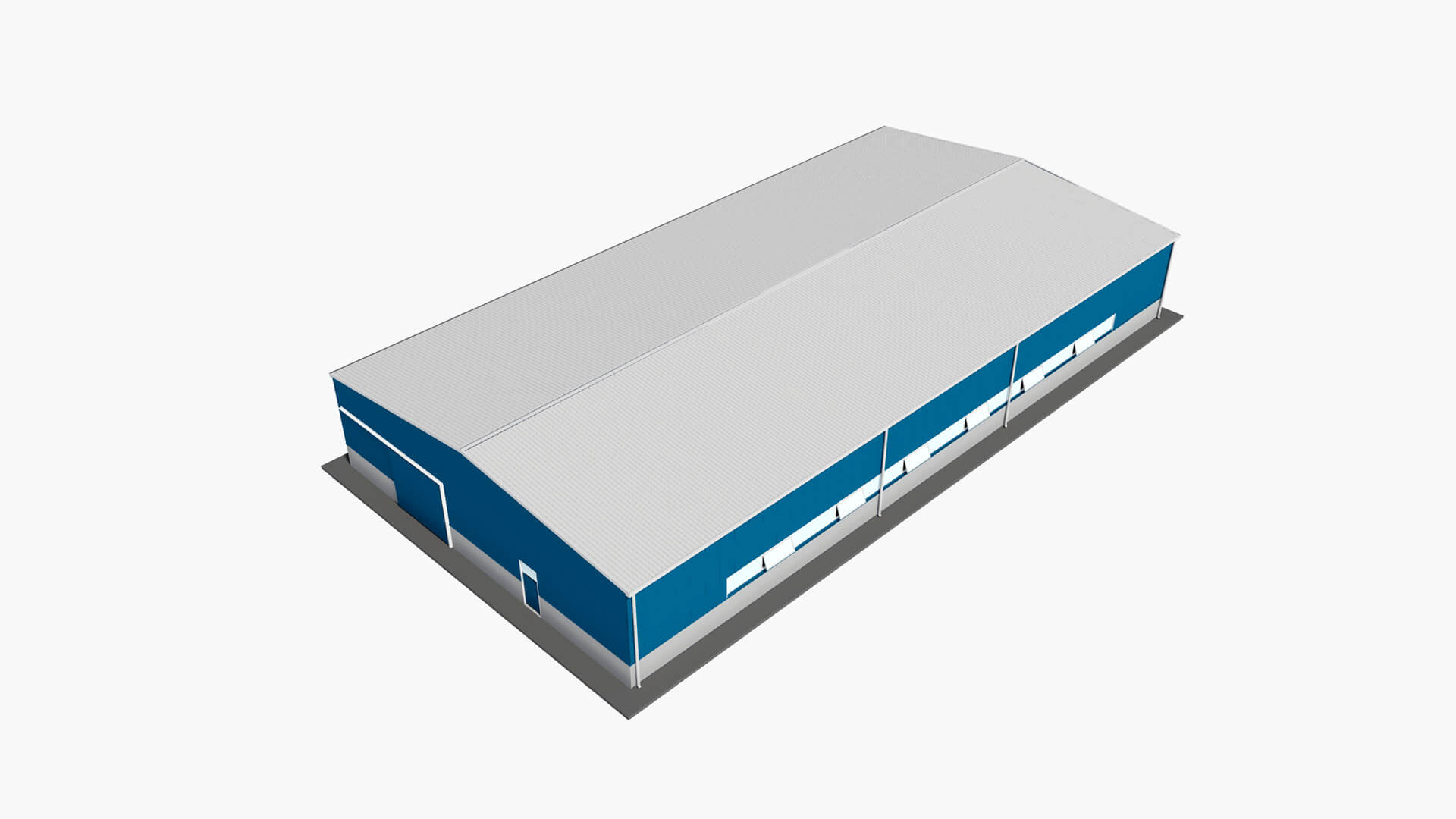

KIT.24x48 WALL-S peculiarity is the possible connection with 1.60 m high external walls. It consists of hot-dip galvanized steelwork with double-pitched roof, spandrel sandwich panels, strip windows in cellular polycarbonate, main door and industrial sliding door.

Technical specifications
Dimensions 24.00x48.00 m
Total m2 1152,00
Usable height 5.00 m
Column distance 6.00 m
No. of doors 1 dim. 1,30x2,10 m
No. of main industrial doors 1 dim. 4.70x4.30 m
Total area of windows 86,40 m²
Operable windows area 30.00 m²
Wind 25 m/s
Earthquake-resistant YES
Roof load 140 kg/m²
Roof Panel thickness 50+40 mm
Roof thermal transmittance (U) W/m²K = 0.43
Walls Panel thickness 50 mm
Wall thermal transmittance (U) W/m²K = 0.45
Windows Polycarbonate thickness 40 mm
Masonry work (by third party) 1.60 m

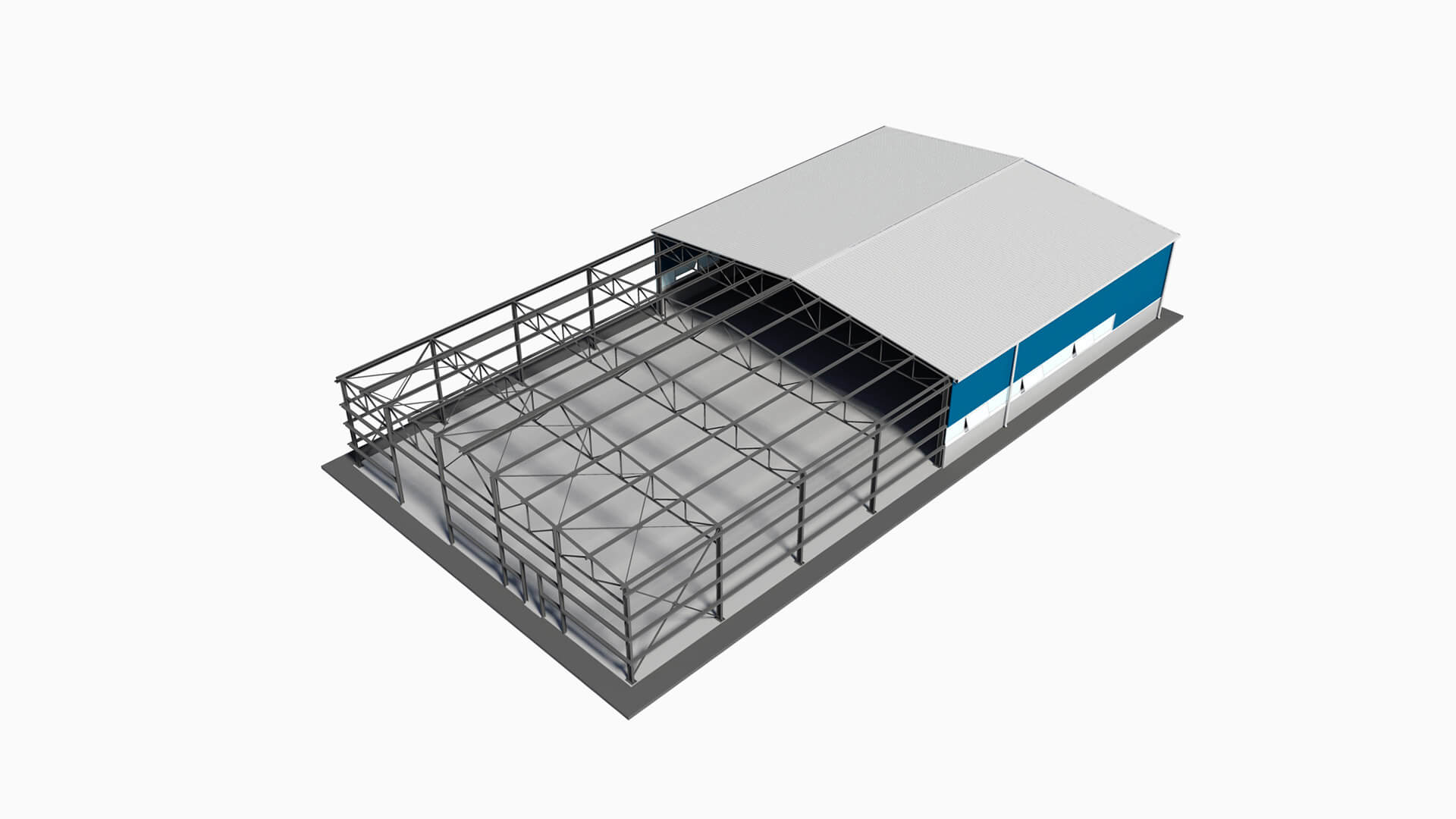

Load-bearing structure

Predesigned, welded, bolted structural steelwork, protected with hot-dip galvanization. Material S235JR - S275JR - S355JR ISO 10025-1/2. Grade 8.8 bolting material

Roof panels

Roof in sandwich panels consisting of two galvanised sheet layers filled with an inner core of polyurethane foam (PUR).

Wall panels

Walls in sandwich panels consisting of two galvanised sheet layers filled with an inner core of polyurethane foam (PUR).

Gutters

Gutters in galvanized, pre-painted, shaped metal sheets.

Down pipes

Down pipes in galvanized, pre-painted, shaped metal sheets, including running outlets, collars and accessories.

Metal sheets

Galvanized, pre-painted, shaped metal sheets for ridges, corner joints, flashings and eaves and any other necessary element.

Industrial sliding door

Aluminium industrial sliding door in sandwich panels, with tracks and accessories for opening.

Industrial sliding door

Aluminium industrial sliding door in sandwich panels, with tracks and accessories for opening.

Door

Single door with push bar and accessories.

Doors and windows

Doors and windows with thermally broken profiles and cellular polycarbonate panels. Automatic opening and closing operated by an actuator.

Colours
Roof

Roof

RAL 8017

RAL 8017

RAL 3009

RAL 3009

RAL 6005

RAL 6005

RAL 5010

RAL 5010

RAL 9006

RAL 9006

RAL 9002

RAL 9002

Roof

Walls

Walls

RAL 8017

RAL 8017

RAL 3009

RAL 3009

RAL 6005

RAL 6005

RAL 5010

RAL 5010

RAL 9006

RAL 9006

RAL 9002

RAL 9002

Walls

Edges

Edges

RAL 8017

RAL 8017

RAL 3009

RAL 3009

RAL 6005

RAL 6005

RAL 5010

RAL 5010

RAL 9006

RAL 9006

RAL 9002

RAL 9002

Edges

Optional services

KIT.SOLUTIONS concept is based on adaptation to customers' needs. To this purpose, the following extra services are available on request to complement your supply:

  • Transport in Italy and all over the world
    KIT.SOLUTIONS products are delivered Ex-Works, loaded on containers or trucks. Transport can be included in the supply, with all necessary shipping documents.
  • Installation by skilled staff
    KIT.SOLUTIONS products have been designed to be self-installed by skilled technical staff using appropriate installation equipment. Should this not be case, our installation team will be available for a quick, safe, turnkey solution.
  • Technical supervision during installation
    DIY installation can be complemented with technical supervision of all installation phases.
  • Foundation design
    Foundation design and plans can be included in your order on request (only drawings showing template positions and stresses are included in the basic supply). Two standard foundation designs are available to this purpose. Should these loads differ from your expectations, a new, customized design can be requested.
Optional products

In order to meet all buyers' needs, KIT.SOLUTIONS products can be customized with the following optional accessories:

  • Skylights
  • Wind-catchers or SHEVS (Smoke and heat exhaust ventilation systems)
  • Lifelines
  • Cage ladder for access to the roof
  • Recessed fasteners (hidden screws)
  • Additional industrial sliding doors 4.70x4.30 m
  • Additional doors 1.20x2.10 m
Documents supplied

In order to speed up bureaucratic formalities, KIT.SOLUTIONS products are supplied with the following documents:

  • Architectural drawings
  • Structural drawings of steelworks to hand over to relevant authorities
  • Engineering calculation and analysis report
  • BOMs
  • Installation Manual
  • Certificates of structural materials
  • Technical data sheet, manuals and declaration of conformity
  • Certificates of origin (if required)
  • Packing list
Version KIT.24x48

MINIMAL

€ 193,750.00
VAT excluded

WINDOW

€ 178,250.00
VAT excluded

WALL-H

€ 178,750.00
VAT excluded

OPEN

€ 156,500.00
VAT excluded
